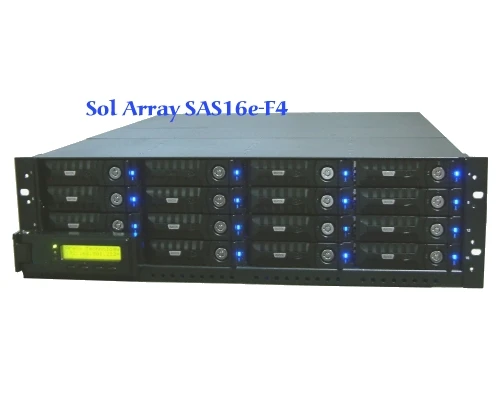

Sol Array SAS16e-F4

• 64-bit RISC CPU (800Mhz)
• Standard 256MB ECC cache for each controller, Up to 4GB with resizing
• Hot Swappable / Dual Redundant Controllers or Single Controller
• RAID 0, 1, 3, 5, 6, 10, 30, 50, 60, JBOD
• Active-Active Logical Unit Access and Software Cache Mirroring
• Hot Swap HDD, Auto-rebuilding, & Hot Spare
• Fully modularized design for highest reliability and easy maintenance
• Remote GUI Management via web browser
• Host : Up to 4 x 4Gb Fibre Channel，32 Concurrent Hosts Supported
• HDD : 16 x Dual Port SAS (3Gbs) interface also supporting SATA II (3Gbs)
• Support Online Daisy Chaining JBOD, up to 112 HDD are supported
• Online RAID Expansion and RAID level Migration
• AC-DC/DC-DC six pairs of redundant and load balance circuit design to reduce the HD bad sector
• Up to 256 LUNs is Supported
• Single Web Browser Management Console to manage multiple RAID
• Web Based Management Interface, SNMP, Email Alert are supported
• OS Support: Windows Server 2003 / 2008, Windows 2000/NT/XP-Pro, Linux, Sun Solaris, Tru64 Unix, HP-UX, IBM AIX, SGI Irix, Mac OS X, Free BSD
